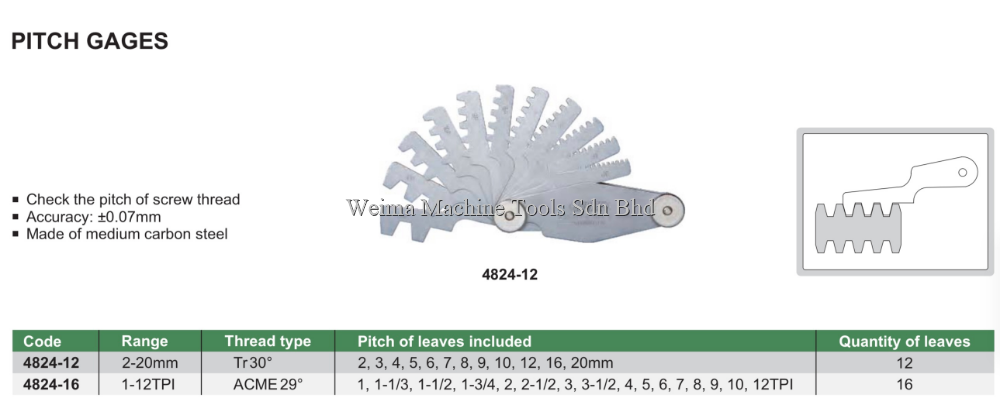

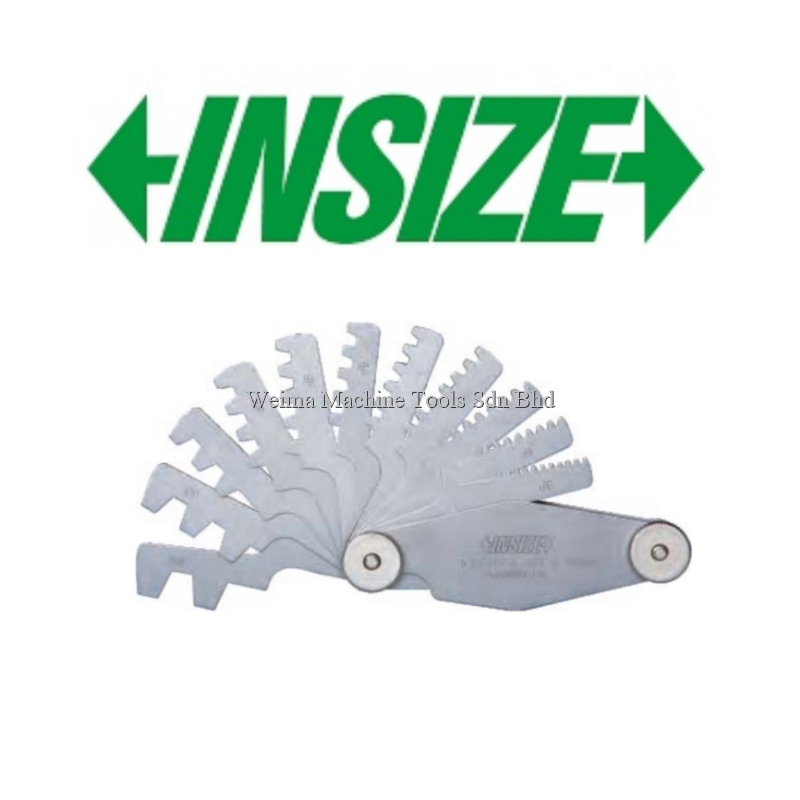

INSIZE Pitch Gauge (Tr & ACME)

Model : 4824-12, 4824-16

Insize pitch gauge is measurement tools used to check the pitch of screw thread for thread type of Tr 30º and ACME 29º

Product Features :

1. Accuracy : +/-0.07mm

2. Made of medium carbon steel

Specifications :

1. 4824-12 -- Range : 2-20mm

                      Thread Type : Tr 30º

                      Pitch of leaves included : 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 16, 20mm

                      Quantity of leaves : 12

2. 4824-16 -- Range : 1-12TPI

                      Thread Type : ACME 29º

                      Pitch of leaves included : 1, 1-1/3, 1-1/2, 1-3/4, 2, 2-1/2, 3, 3-1/2, 4, 5, 6, 7, 8, 9, 10, 12TPI

                      Quantity of leaves : 16
